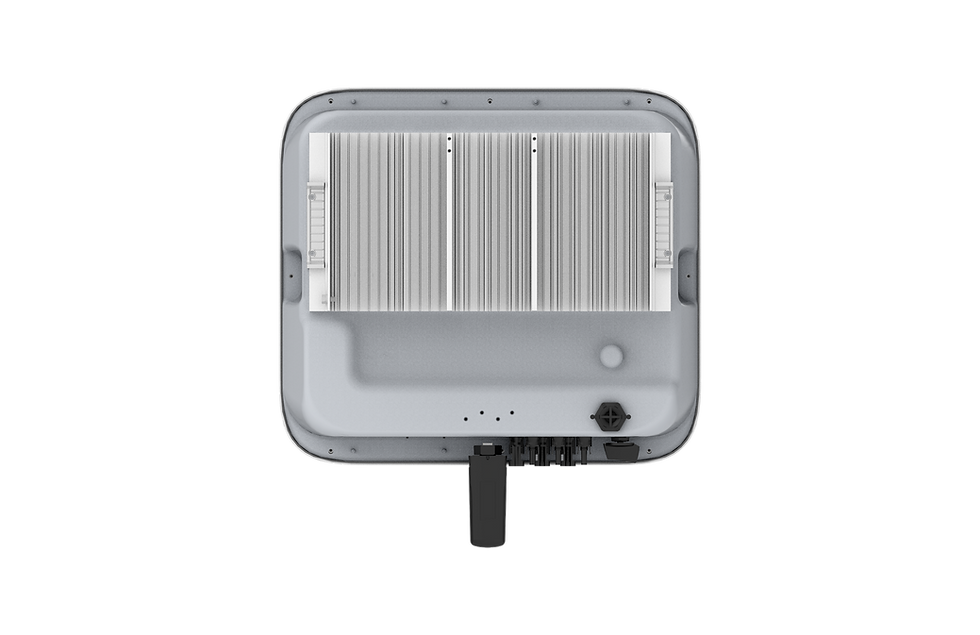

SUN2000-5KTL-M1



SUN2000-3/4/5/6/8/10KTL-M1 (High Current Version) Technical Specification

Technical Specification	SUN2000 -3KTL-M1	SUN2000 -4 KT L- M 1	SUN2000 -5KTL-M1	SUN2000 -6KTL-M1	SUN2000 -8KTL-M1	SUN2000 -I0KTL-MI
Efficiency
Max. efficiency	98.20%	98.30%	98.40%	98.60%	98.60%	98.60%
European weighted efficiency	96.70%	97.10%	97.50%	97.70%	98.00%	98.10%
Input (PV)
Recommended max. PV power 1	4,500 wp	6,000 wp	7,500 wp	9,000 wp	12,000 wp	15,000 wp
Max. input voltage .2	1,100 v
Operating voltage range 3	140 v - 980 v
Start-up voltage	200 v
Rated input voltage	600 v
Max. input current per MPPT	13.5 A
Max. short-circuit current	19.5 A
Number of MPP trackers Max. input number per MPP tracker	2
Max. input number per MPP tracker	1
Input (DC Battery)
Compatible Battery	HUAWEI Smart string ESS 5kWh - 30kWh
Operating voltage range	600 v - 980 v
Max operating current	16.7 A 10,ooo w
Max charge Power	10000W
Max discharge Power	3,300 w	4,400 w	5,500 w	6,600 w	8,800 w	10,000 w
Output (On Grid) Three-phase
Grid connection Rated output power	3,000 w	4,000 w	5,000 w	6,000 w	8,000 w	10,000 w
Max. apparent power Rated output voltage	3,300 VA	4,400 VA	5,500 VA	6,600 VA	8,800 VA	11,000 VA 4
Rated output voltage	220 vac / 380 vac, 230 vac / 400 vac, 3W / N+PE
Rated AC grid frequency	50 Hz/60 Hz
Max. output current	5.1 A	6.8 A	8.5 A	10.1 A	13.5 A	16.9 A
Adjustable power factor Max. total harmonic distortion	0.8 leading...0.8 lagging
Max. total harmonic distortion	< 3 %
Output (Off Grid)
Backup Box Maximum apparent power	Backup Box - Bl
Maximum apparent power	3,000 VA	3,300 VA	3,300 VA	3,300 VA	3,300 VA	3,300 VA
Rated output voltage	220 v / 230 v
Maximum output current	13.6 A	15 A	15 A	15 A	15 A	15 A
Power factor range	0.8 leading …0.8 lagging
Features & Protections
Input-side disconnection device	Yes
Anti-Islanding protection DC reverse polarity protection	Yes
DC reverse polarity protection	Yes
Insulation monitoring	Yes
DC surge protection	Yes, compatible with TYPE 11 protection class according to EN/IEC 61643-11
AC surge protection	Yes, compatible with TYPE 11 protection class according to EN/IEC 61643-11
Residual current monitoring	Yes
AC overcurrent protection	Yes
AC short-circuit protection	Yes
AC overvoltage protection	Yes
Arc fault protection	Yes
Ripple receiver control	Yes
Integrated PID recovery 5	Yes
Battery reverse charging from grid	Yes
General Data
Operating temperature range	°C-25-+°C60(-°F13-°F140)
Relative operating humidity	O %RH - 100 %RH
Max. operating altitude	4,000 m (13,123 ft.) (Denting above 2000 m)
Cooling	Natural convect
Display	LED Indicators; Integrated WLAN + FusionSolar App
Communication	RS485,• WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket)	17 kg (37.5 1b)
Dimension (incl. mounting bracket)	525 x 470 x 146.5 mm (20.7 x 18.5 x 5.8 inch)
Degree of protection	IP65
Nighttime Power Consumption	< 5.5 W6
Optimizer Compatibility
DC MBUS compatible optimizeR	SUN2000-450W-P
Standard Compliance (more available upon request)
Certificate	EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Grid connection standards	G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777,  CIO/II, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1,



SUN2000-3/4/5/6/8/10KTL-M1

AI Powered Arcing Protection with Pinpoint Positioning
Compatible to SUN2000-450W-P optimizer*
Battery ready by direct Plug & Play, no extra device or any retrofit required
A 10KTL inverter allows 10KW full power AC output plus 10KW full power battery charge
High efficiency inverter topology, Max. Efficiency 98.6%

Specification

1) Inverter max input PV power is 20,000 Wp when long strings are designed and fully connected with SUN2000-450W-P power optimizers.

2) The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would probably damage inverter.

3)Any DC input voltage beyond the operating voltage range may result in inverter improper operating.

4) C10 / 11: 10,000 VA

5) SUN2000-3~10KTL-M1 raises potential between PV- and ground to above zero through integrated PID recovery function to recover module degradation from PID. Supported module types include: P-type (mono, poly).

6) <10 W when PID recovery function is activated.

Features & Protections

Active Safety

AI Powered Active Arcing Protection

Higher Yields

Up to 30% More Energy with Optimizer

Battery Ready

Plug & Play battery interface 2

Flexible Communication

WLAN, Fast Ethernet, 4G Communication Supported

Advantages and benefits

Application
